"Ninety7 @ Siglap" House: Animation (completed)

http://www.youtube.com/watch?v=U-5R8_rCjPU

"Ninety7 @ Siglap" House: Animation (progress)

SETTING UP CAMERA AND MAKING IT PATH CONSTRAINT

MAKING DOMINOS WITH MASSFX TOOLS

MERGING THE CLIPS INTO ONE USING WINDOW LIVE MOVIE MAKER

ADJUSTING SOUND WAVE TO SUIT THE VIDEO USING WAVEPAD PROGRAM

MERGING VIDEO AND AUDIO WITH VIDEOPAD PROGRAME

"Ninety7 @ Siglap" House: Interior Rendering (Render)

INTERIOR VIEW 1 (LIVING ROOM)

INTERIOR VIEW 2 (DINING ROOM)

"Ninety7 @ Siglap" House: Interior Rendering (progress)

SETTING UP FURNITURE POSITION

SET UP CAMERA VIEW AND CAMERA CORRECTION

ADD IN LIGHTING

ADDING FURNITURE FOR SECOND VIEW

ADD IN LIGHTING

MAKING DETAILS TO MERGE TO INTERIOR VIEW

"Ninety7 @ Siglap" House : Exterior Rendering (Render)

EYE LEVEL VIEW 1 (DAY)

EYE LEVEL VIEW 2 (NIGHT)

WITH HUMAN SCALE

WITH HUMAN SCALE

"Ninety7 @ Siglap" House : Exterior Rendering (Progress)

APPLYING BITMAP SWIMMING POOL TILES

USING PHOTOSHOP TO PRODUCE BUMP

APPLYING BUMP

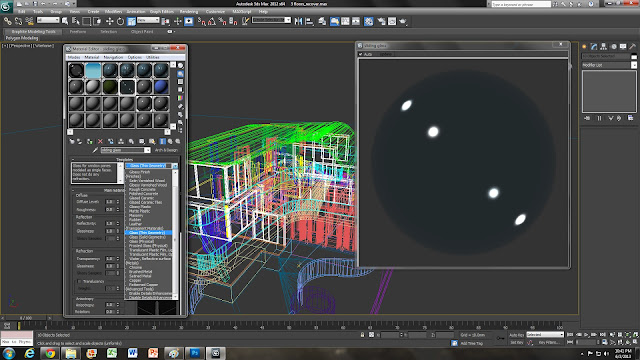

ADDING WATER MATERIAL FOR THE POOL FROM 'ARCH AND DESIGN' TEMPLATE

ADDING BITMAP TO THE CAR PORCH FLOOR

ADDING BITMAP TO THE ROOF

ADDING BITMAP TO THE SWIMMING POOL DECK

BY USING MULTI/SUB-OBJECT, I AM ABLE TO ADD SEVERAL TYPE OF MATERIAL TO AN ELEMENT.

OUT COME OF USING MULTI/SUB-OBJECT

ADDING BITMAP AND BUMP ONTO CABANA

USING PHOTOSHOP TO PRODUCE BUMP FOR THE SWIMMING POOL DECK

APPLYING THE BUMP MAT ONTO THE MATERIAL MAP

SETTING UP LIGHTING AND CAMERA VIEW

MODIFY THE CAMERA VIEW SO THAT IT IS CAMERA CORRECTED

USING PHOTOSHOP TO CUT OUT THE BACKGROUND

APPLYING IMAGE OF NIGHT SKY AS BACKGROUND

USING 'PHOTOSCAPE' SOFTWARE TO ENHANCE THE PICTURE

USING PHOTOSHOP TO CUT OUT THE BACKGROUND AND APPLYING CLOUDY SKY AS BACKGROUND

USING PHOTOSCAPE TO ENHANCE THE PICTURE

"Ninety7 @ Siglap" House : Render

ELEVATION 1

ELEVATION 2

ELEVATION 3

ELEVATION 4

TOP VIEW

VIEW FROM THIRD FLOOR TO THE SWIM POOL

VIEW FROM THE GATE

VIEW FROM THE POOL

VIEW OF THE WINDOWS



"Ninety7 @ Siglap" House


Name : JASON NG CHI KAI
Id : 1101G13486

''Ninety7 @ Siglap'' House : Progress

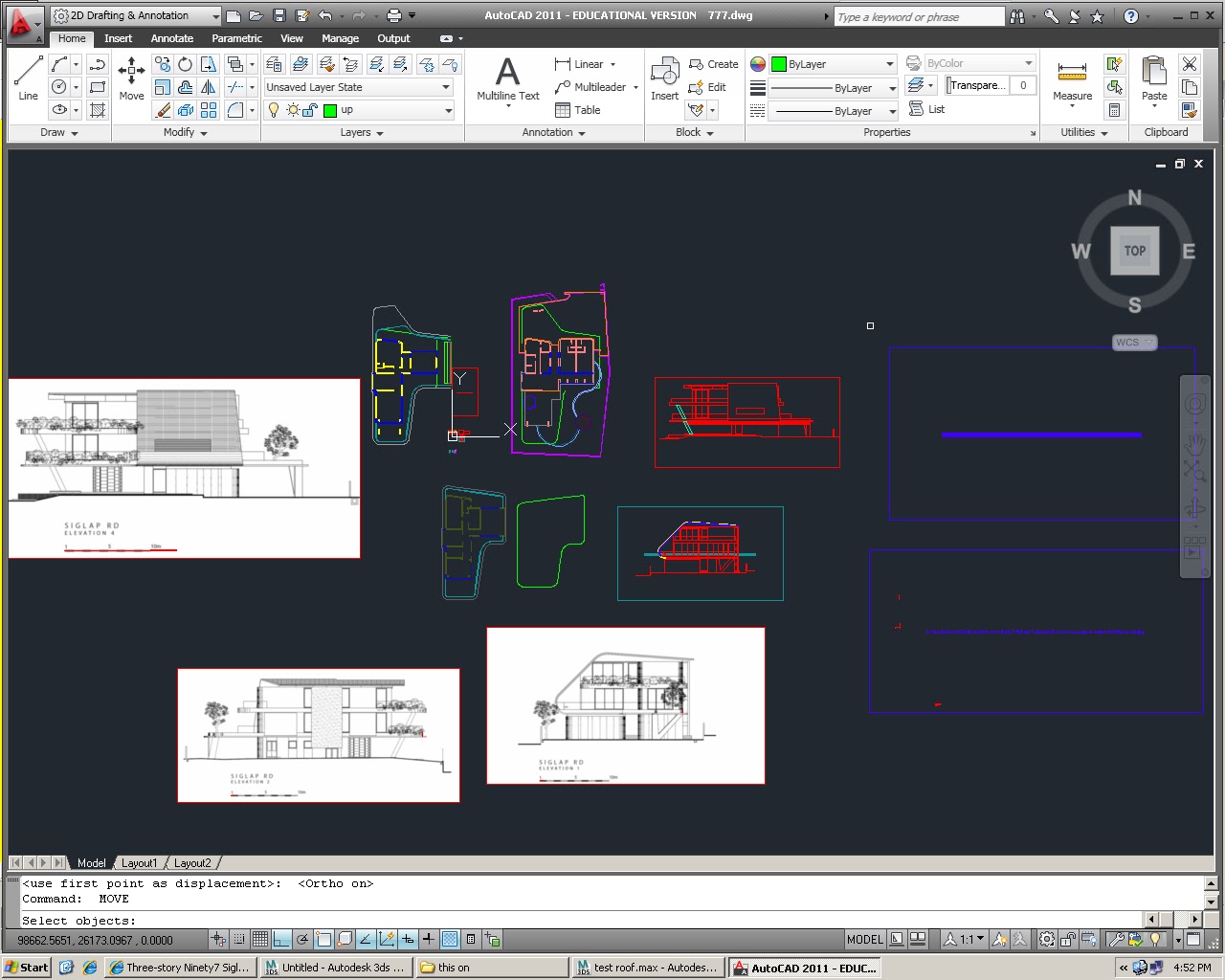

TRACING PLANS AND ELEVATIONS IN AUTOCAD WITH DIFFERENT LAYERS



EXTRUDING FIRST FLOOR WALLS, WINDOWS AND SWIMMING POOL FROM PLAN



EXTRUDING FENCES

EXTRUDING SECOND FLOOR WALLS, WINDOWS AND GLASS PANEL

EXTRUDING THIRD FLOOR WALLS, WINDOWS AND GLASS PANELS

MERGING OF FIRST FLOOR, SECOND FLOOR AND THIRD FLOOR 3DS MAX FILE INTO ONE

STACKING UP ALL THE THREE FLOORS ACCURATELY VIA TOP VIEW



THREE FLOORS STACKED UP IN WIREFRAME



MAKING A SQUARE HOLE IN THE TOP TWO FLOORS BY USING BOOLEAN TO ALLOW THE STAIRS TO BE CREATED AND TO ALLOW CIRCULATION BETWEEN THE FLOORS

CREATING OF THE STAIRS

CREATING OF THE SLANTED BEAM BY EXTRUDING FROM THE ELEVATION VIEW AND POSITIONING IT ACCURATELY VIA PLAN VIEW

EXTRUDING THE ROOF PIECE FROM ELEVATION VIEW AND POSITIONING IT ONTO THE BUILDING.

NOTICE THAT THE OTHER PART OF THE HOUSE IS NOT COVERED BY THE ROOF AND PART OF THE WALL IS EXTRUDED FROM THE ROOF SLANTED PART

COVERING THE OTHER PART OF THE HOUSE BY EXTENDING THE ROOF PIECE FIRST. PLACING THE ROOF SHAPE FROM TOP VIEW PLAN OVER THE EXTENDED ROOF PIECE. BOOLEAN THE TWO OPERAND TO GET THE ENTIRE ROOF.

THE EXTRUDED PART OF THE WALL IS FIXED BY ADJUSTING THE VERTEX POINT SO IT IS NOT VISIBLE

ADDING A LEDGE FOR THE WINDOW PANELS BY USING BOX

WINDOWS ARE ADDED AND COPIED OVER. FRAMES AND DESIGN ARE ADJUSTED IN LEAF PARAMETERS



NOTICE THAT THE GATE IS NOT CREATED



CREATING OF THE GATE. AGAIN ADJUSTING THE LEAF PARAMETERS TO GET THE FORM



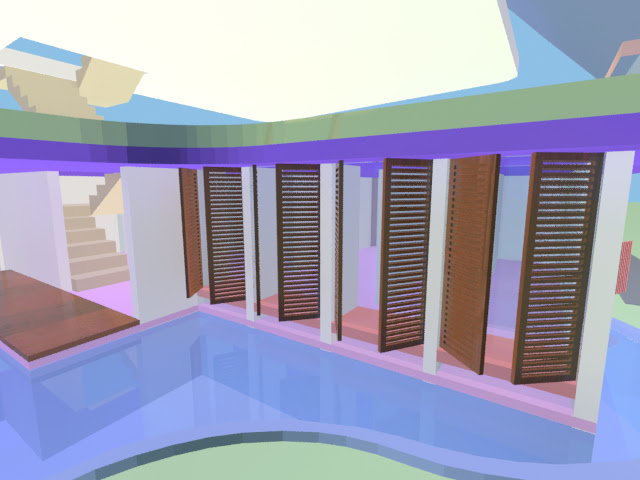

CREATING OF THE SLIDING GLASS DOORS.
